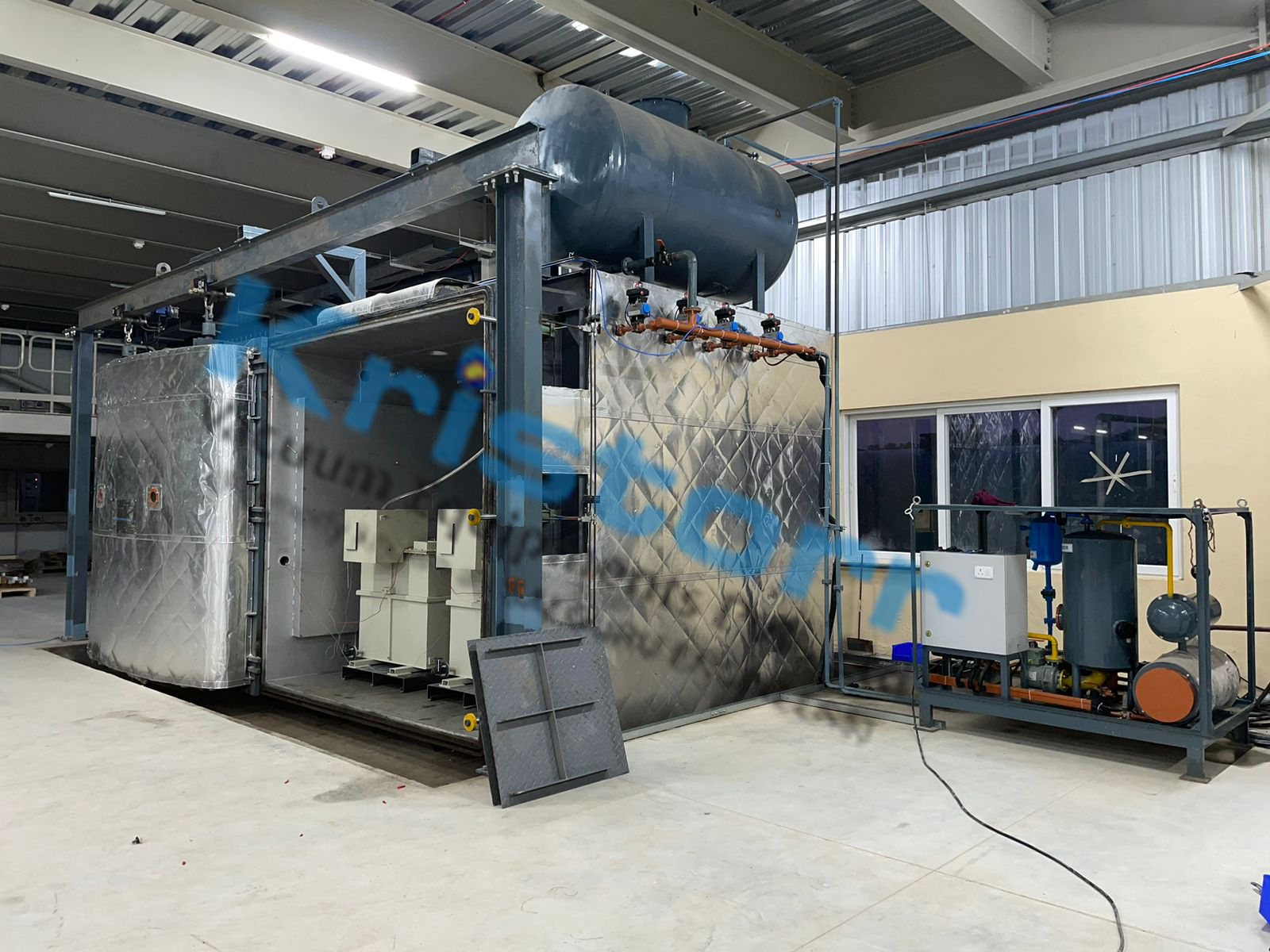

Vacuum Drying Plant
Kristorr Vacuum Equipments Pvt. Ltd.
Vacuum Drying Plant
Product Details:
| Shape | Rectangular or Cylindrical |
|---|---|
| Type of Heating |
1. Air Heating 2. Hot Oil Circulation in the Radiator Banks 3. By Using Thermo Pa |
| Type of Loading | Horizontal Loading by Motorized Trolley Motion, Top Loading |
| Door Locking | Hydraulic Clamping, Manual Clamping |
| Hot Air Circulation | Hot Air Circulating Fans Provided for Equalization of Temperature |
| Exhaust Blower | To Remove Hot Vapor in the Autoclave Before Unloading the Windings |
| Testing Terminal | 6 Points Testing Terminal Provided to Check the Electrical Parameters |
| Temperature Recorder | Temperature vs Time Graph on HMI Screen |
| Control Console | HMI/SCADA Automation |
Drying of power transformer, distribution transformer, capacitors are mandatory in order to with stand for high electrical heads. These plants are specially used for drying paper insulated windings of transformers and filling of insulated oil under vacuum. By vacuum technique the moisture is removed from the deep cavitations of windings paper and improves the electrical parameters. The autoclave are designed for fine vacuum, thermal expansion and to withstand to the temperature upto 200 deg C
